The ECOAZUR® System
A complete sustainability solution
High-performance technology that taps into hidden opportunities

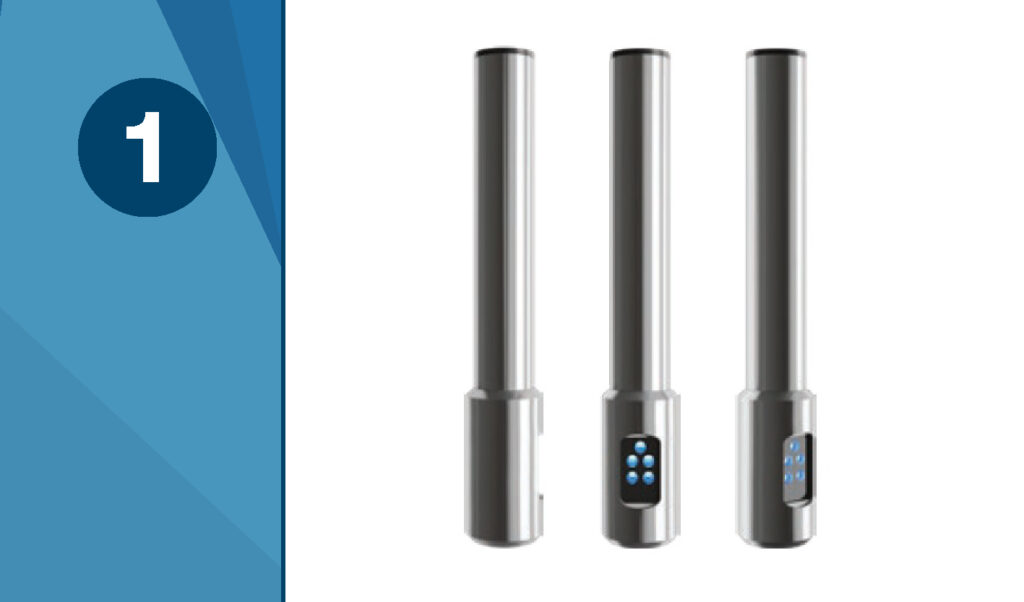

IRIS BLEU® OPTICS
What they do:
These sensors measure the emission of smoke, vapor, or fumes and increase the exhaust rate only and as much as necessary.
- Allows for the widest airflow modulation range
- Waterproof, impervious to grease (no air purge units)
- Requires little to no maintenance

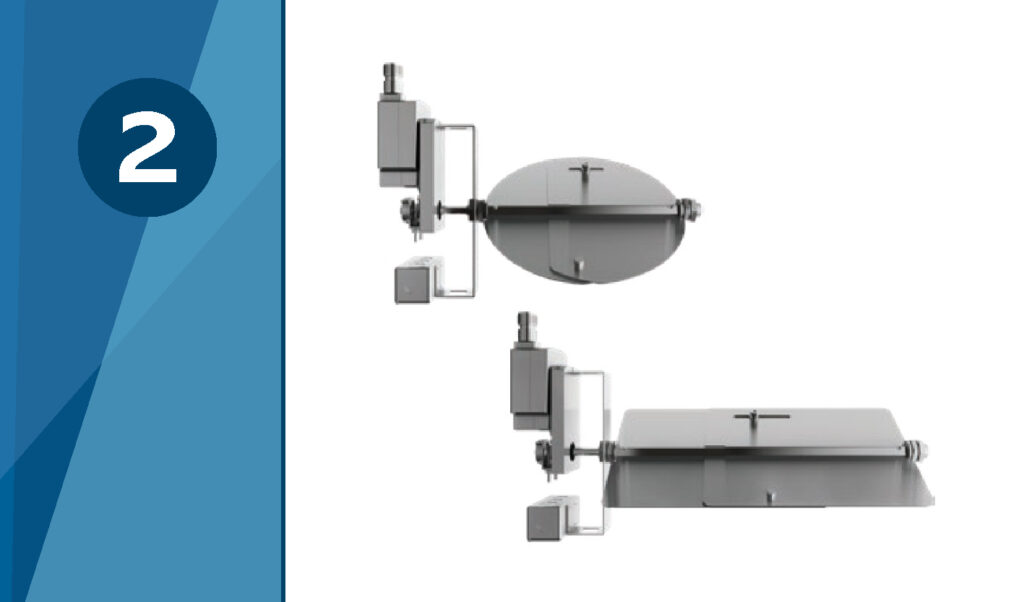

MODULATING DAMPERS
What they do:
In situations where multiple hoods share a common exhaust fan, ECOAZUR® modulating dampers help to independently control the exhaust rate of each hood, regardless of the number of hoods connected to an exhaust system – thus improving overall kitchen performance
- Quick reaction time (4 s)
- Open fail-safe position (fire, VFD in bypass)
- Easy to install in new or retrofit applications
- No cleaning, cutting or welding duct work required

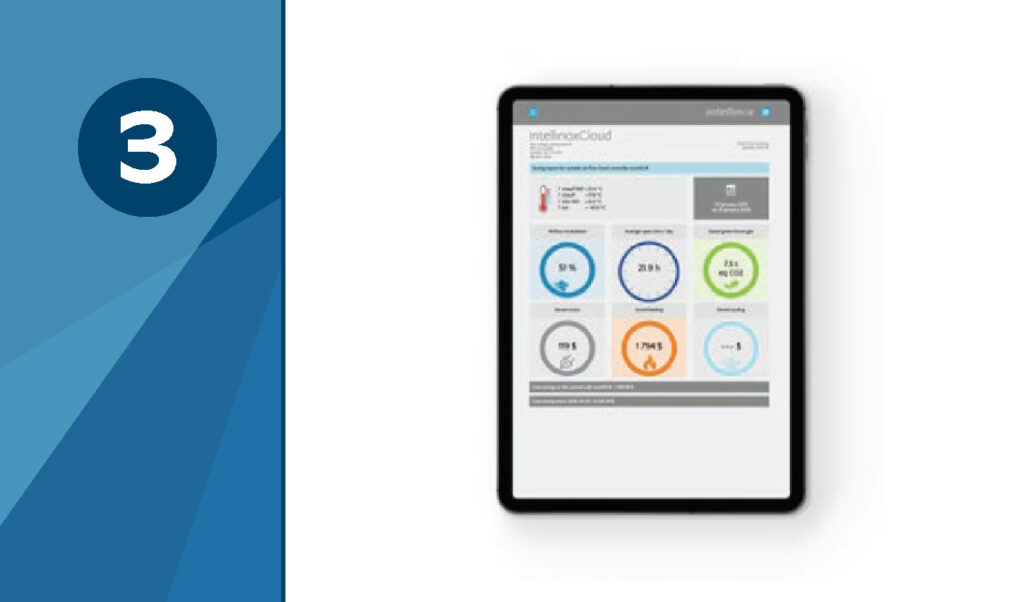

SECURED CLOUD PLATFORM
What it does:
This easy-to-use web platform informs your management team that maintenance and operations are aligned with your ROI target. It also provides access in-depth analytics and reports that will allow your team to gain insight into how to optimize your ventilation and benchmark your kitchen’s performance.
- Remote monitoring
- Simple dashboard
- Email notification
See how it works
ECOAZUR® Primary Components
Using our proprietary communication protocol offers a versatile sensor network topology:
- Automatic detection/addressing of ECOAZUR® intelligent sensors
- User-friendly RJ45 connections limit wiring errors
- ECOAZUR® network hubs minimize cable lengths
Hood sensor network components may include:
- Optic sensors (IB) – located in the hood canopy
- Temperature sensors (TT) – located in the hood canopy and/or the hood collars
- Pressure sensors (PT) – located in the exhaust ducts and/or behind the hood plenum
- Network hubs (NE) – located above the hood
- User interface (CT) – one or many keypads may be installed throughout the kitchen
- Digital input modules (DS) – panel mount, signal coming from a third-party device
- Analog input modules (AS) – panel mount, signal coming from a third-party device
- Network cables (NF) – designed specifically for the hood environment, RJ45 connectors

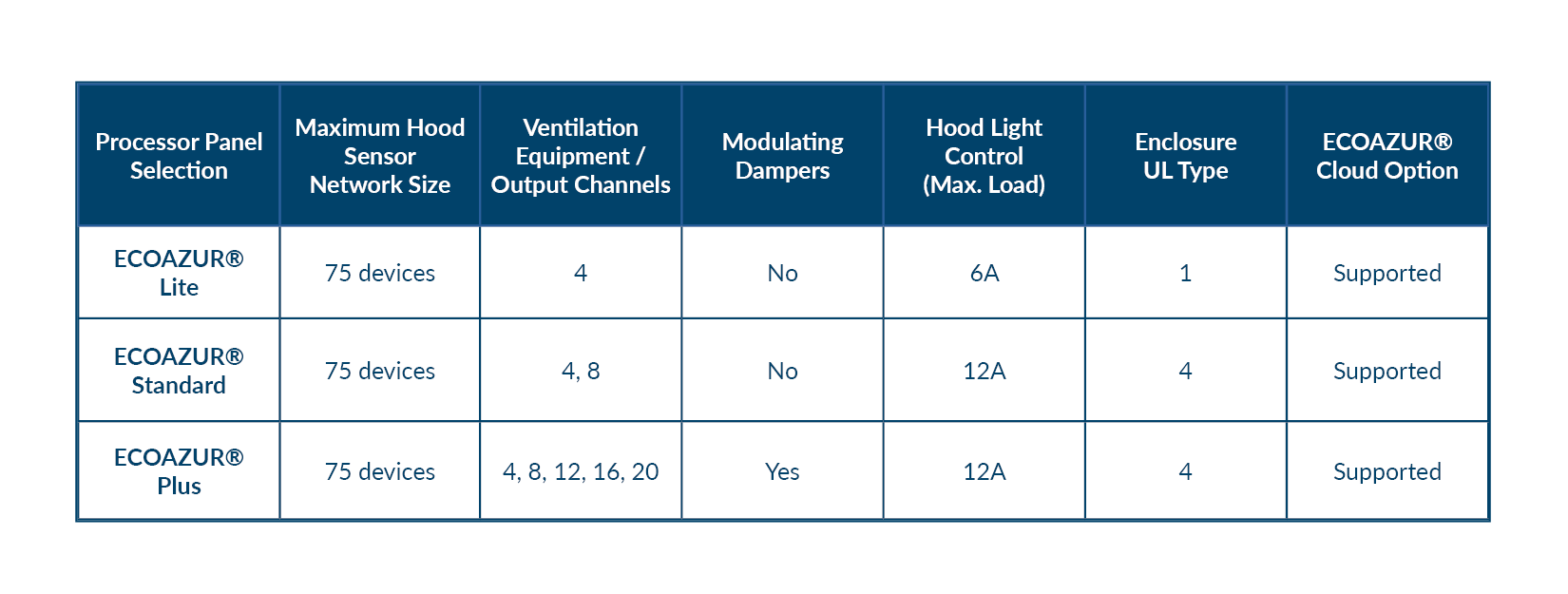

Processor Panel components include:
- ECOAZUR® Processor (CU)
- ECOAZUR® Output Module(s) (TC)
- Power Supply (120-240Vac to 24Vdc)
- Light Control Relay
- Cloud Module (optional)
The ECOAZUR® Processor Panel interfaces to ventilation equipment and third-party devices such as:
- VFDs, ECMs and/or ECOAZUR® Modulating Dampers
- Fire Suppression System
- Hood Lights
- BAS inputs/outputs
- Kitchen temperature sensor (optional)
3 energy-saving levels to choose from
Learn more about ECOAZUR®
